System M Shelf

System M Shelf is a modular system of vertical wall profiles in various lengths which allow the mounting of shelves, cor- pora, panels and tables in any position. The grid dimensions are 80 and 120 cm. The suspension is carried out by bottom supports which can be inserted from the front into the pro- file and placed in the grid of 4 cm. The grid is inside the pro- files and almost invisible. Numerous elements are available for mounting, usually even with different depths to allow configurations according to individual requirements. The interior fittings of the corpora can be provided with various applications for private use as well as for use in the office. All accessories can later easily be added. In addition to be- ing able to mount the vertical wall profiles directly onto the wall, the shelf can also be mounted in front of the wall sup- ported on the floor. Then most loads will be discharged to the ground. We call it ground-based wall mounting.

Design: Thomas Merkel, 2011

One shelf - several ways

My Image

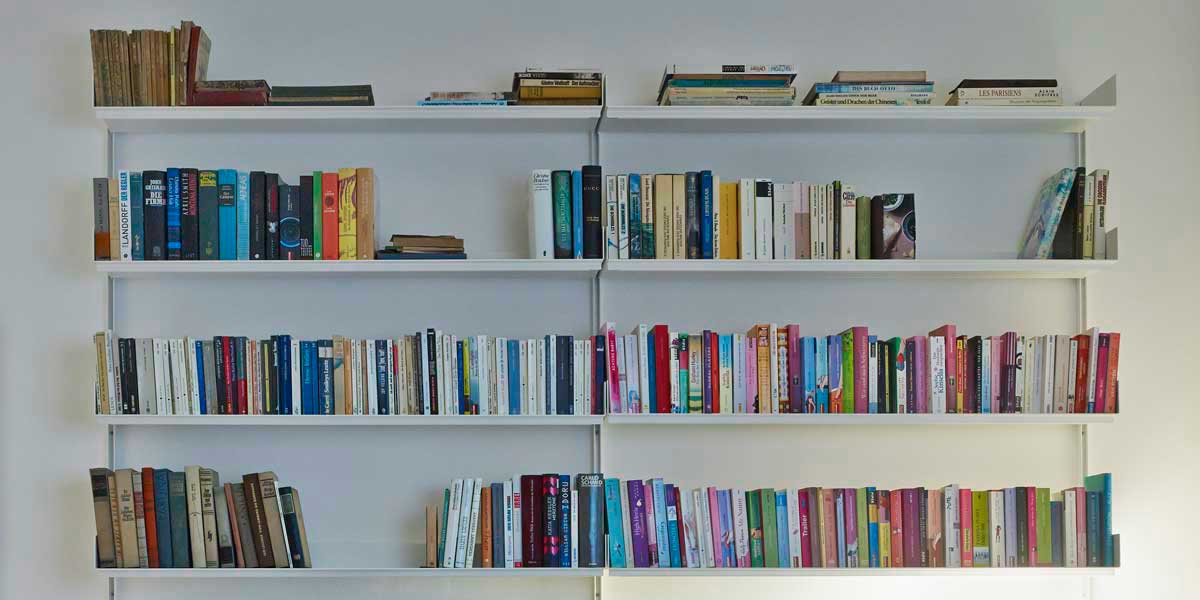

System M Shelf wallmounted
My Image
System M Shelf ground-based wallmounted

Sales price incl. 19% VAT

Sales price excl. VAT

My Image

468,86 € + 412,93 €

394 € + 347 €

My Image

592,62 € + 536,69 €

498 € + 451 €

My Image

678,30 € + 606,90 €

570 € + 510 €

My Image

863,94 € + 792,54 €

726 € + 666 €

My Image

842,52 € + 754,46 €

708 € + 634 €

My Image

1.117,41 € + 1.029,35 €

939 € + 865 €

Gallery

System components

Vertical wall profile
length 44, 64, 84, 104, 124, 144, 164, 184, 204 and 224 cm
C-profile for ground-based wall mounting
length 204, 224 and 244 cm
Panel and panel perforated
width 80 and 120 cm height 8, 20 a. 40 cm
Hook, console, brochure box
Shelf
width 80 and 120 cm depth 16, 24, 32 and 40 cm
Shelf 0.5 file level
width 80 and 120 cm depth 24, 32 and 40 cm
Ending and writing shelf
width 80 and 120 cm depth 24, 32 and 40 cm
Sloping shelf 0.5 file level
width 80 and 120 cm depth 32 cm
Shelf for coat-hangers
width 80 and 120 cm depth 32 and 40 cm
Drawer shelf
width 80 and 120 cm depth 32 and 40 cm
Drawer shelf 0.5 file level
width 80 and 120 cm depth 40 cm
Corpus open 1 file
width 80 and 120 cm depth 40 cm height 40 cm
Corpus with hinged door 1 file level
width 80 and 120 cm depth 40 cm height 40 cm
Corpus with drawer 1 file level
width 80 and 120 cm depth 40 cm height 40 cm
Corpus with 2 drawers 0.5 file level
width 80 and 120 cm depth 40 cm height 40 cm
Table
width 80 and 120 cm depth 80 cm height 72 cm

Attachments

Spacer
Lock right
Rear wall with cutout
Inner drawer
Adjustable intermediate floor
Attachment for drawer 1 file level
Insert for drawer for hanging files
Insert for drawer for 25 CDs
Insert for drawer for 17 DVDs
Insert for drawer for DIN A4
Insert for drawer with angled paper trays
Bookend
Inscription field
Attachment for shelf for DIN A4

Attachment overview

< scroll >

Stacks Image 655


Bookend

Stacks Image 660


Inscription field

Stacks Image 665

Attachment for shelf
for DIN A4

Stacks Image 583


Lock

Stacks Image 588


Inner drawer

Stacks Image 593

Adjustable
intermediate floor

Stacks Image 598

Attachment for drawer
1 file level

Stacks Image 603

Insert for drawer
for hanging files

Stacks Image 608

Insert for drawer
for CDs

Stacks Image 613

Insert for drawer
for DVDs

Stacks Image 618

Insert for drawer
for DIN A4

Stacks Image 623

Insert with
angled paper trays

Stacks Image 628


Rear wall cutout

A detailed cinematic explanation of System M

My Image

Colours

Traffic white RAL 9016
Traffic grey A RAL 7042
Traffic grey B RAL 7043
Traffic black RAL 9017

Special colour RAL
